Restoring Kinetic Integrity in Traditional Martial Arts Training Equipment

When it comes to mastering How to repair a broken Wing Chun dummy leg, getting the right technical specifications and structural details matters. Loctite Epoxy Metal & Concrete (Marine-Grade, 24h Handling / 72h Full Cure)

IRWIN Quick-Grip Bar Clamps (18-inch, Heavy-Duty, 1,500 lb Capacity)

AugustaPro Iron Body Wooden Dummy (Solid Teak Trunk, 195 lbs, 15° Leg Angle, Lifetime Warranty)

The Technical Reality / The Failure Point

A broken dummy leg isn’t random failure. It’s structural betrayal. Every crack tells a story of torque, moisture, or misalignment. If you don’t read that story, you’ll repeat it.

Common Failure Modes

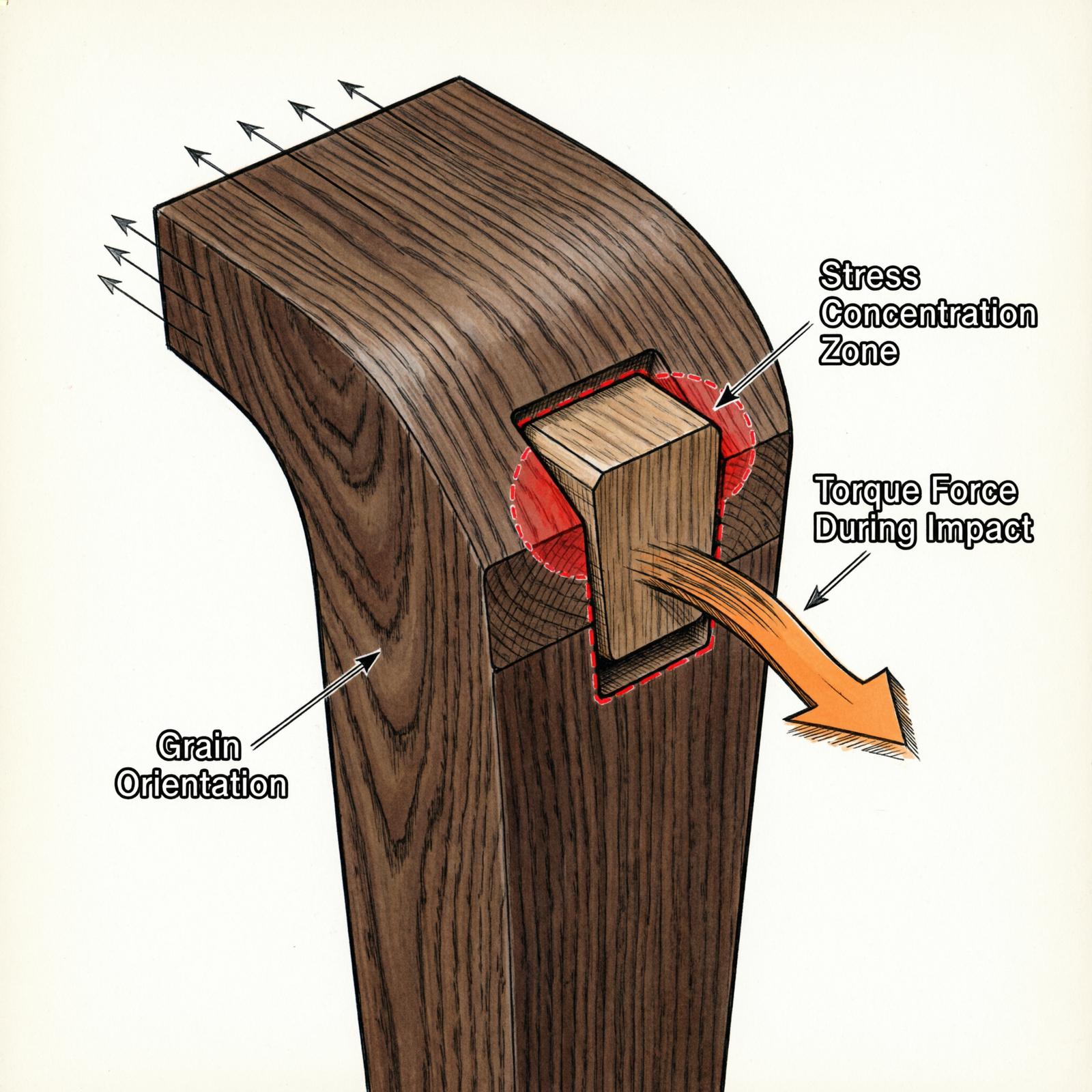

**Mortise Shear**:

The leg mortise must be cut at a precise 15-degree downward angle. Cut it flat—or worse, upward—and low kicks generate torque instead of absorption. That torque concentrates at the knee joint. Result: the leg snaps like a dry twig under lateral load. You feel it as a sudden “give” followed by instability—not resistance.

**Grain Orientation**:

If the leg timber was cut across the grain (perpendicular to growth rings), its shear strength drops below 1,000 PSI—well under the 2,500+ PSI needed for repeated kicking forces. Pine or fir legs fail fast because their natural fiber alignment can’t resist sideways stress. You’ll see splitting radiating from the mortise, not along the length.

**Humidity Swelling**:

Hardwoods like oak or teak expand and contract with indoor humidity swings. In winter heating cycles, they dry rapidly, causing internal tension. Cracks form at the knee joint—the highest-stress transition point—where the leg meets the trunk. These aren’t surface checks; they’re deep micro-fractures that weaken the joint over time. You notice it first as a faint “ping” on impact, then visible hairline splits.

**Base Instability**:

A freestanding base that shifts—even 1/16 inch—transfers shock directly into the leg-trunk junction. No inertial mass means no energy dissipation. Every kick becomes a hammer blow to the joint. You feel it as vibration up your shin, or the dummy wobbling after a single Pak Sau.

Structural Limits

ParameterSpecificationConsequence of Deviation
Trunk Mass130–200 lbsPivots under force if below 130 lbs; mobility suffers above 200 lbs.
Leg Load Threshold>1,800 lbs lateral forceRotation occurs if capacity is exceeded during full-power strikes.
Material ThresholdSoftwood vs HardwoodSoftwood fails in 6–12 months; Hardwood lasts years if dried properly.

Check out our top-rated Wing Chun training gear & equipment on Amazon

SHOP THE COLLECTION

If your dummy failed outside these parameters, the fault lies in construction—not use.

The Core Gear Architecture

Not all breaks are equal. Your response depends entirely on where and how the failure occurred. Here’s how to triage:

Hairline Crack / Split (Non-Catastrophic)

**What it looks like**: A thin fissure less than 1/16 inch wide, running vertically along the leg, not crossing into the trunk core. The joint still holds firm under light pressure.

**Why it happens**: Humidity cycling or minor overloading. Structural integrity remains greater than 50%.

**Technique**: Epoxy Injection + Clamping

– Drill two 1/8-inch pilot holes (angled inward) along the crack line.

– Inject marine-grade epoxy such as Loctite Epoxy Metal & Concrete using a syringe until it bleeds out the top.

– Clamp with heavy-duty bar clamps like IRWIN Quick-Grip Bar Clamps across the crack—tight enough to close the gap, but not so tight it crushes softwood fibers.

– Let cure: 24 hours handling strength, 72 hours full strength.

– Sand flush, apply wood filler, seal with polyurethane.

**Safety Note**: Do not train at full power until 7 days post-cure. Epoxy needs full polymerization to handle kinetic rebound.

Mortise Enlargement / Loose Leg (Play > 1/8 inch)

**What it looks like**: The leg wobbles side-to-side when pushed. You hear a faint rattle. The mortise hole has widened from repeated impact, losing friction grip.

**Why it happens**: Incorrect initial fit, or grain compression over time. The leg now pivots instead of transmitting force.

**Technique**: Shimming or Re-cutting

– Shimming (Preferred): Cut hardwood strips (oak or maple, 1/16 inch thick) to fit the mortise gap. Apply wood glue to shims, insert snugly, clamp for 24 hours. Test alignment: leg must sit at exact 15-degree downward angle.

– Re-cutting (Last Resort): Only if shims fail. Use chisel set to carefully deepen and reshape the mortise—never remove more than 1/32 inch of material per pass. Over-removal weakens the trunk wall.

**Risk**: Each re-cut reduces trunk thickness. At less than 2 inches remaining wall thickness, the joint becomes unreliable.

Complete Snap / Knee Joint Failure (Catastrophic)

**What it looks like**: The leg is fully detached, or fractured cleanly at the knee joint. Often, the break extends into the trunk’s center axis.

**Why it happens**: Mortise shear plus grain misalignment plus base instability—a perfect storm. The joint absorbed more torque than its design allowed.

**Technique**: Full Leg Replacement or Butterfly Key Joinery

– Full Replacement: Requires cutting a new tenon (1.5 inch diameter, 3 inch long) on the new leg, then reaming the trunk mortise to match. Precision is critical: a 0.5 degree angle error causes binding or play.

– Butterfly Key: A dovetail-shaped hardwood key (e.g., walnut) is inserted across the break line, glued, and clamped. Stronger than epoxy alone—but demands exact saw cuts and chisel work.

**Reality Check**: This is advanced woodworking. If you’ve never cut a tenon or used a mortise gauge, the risk of misalignment is high. A poorly fitted leg will pivot under Pak Sau, sending unpredictable rebound into your elbow or wrist.

**Bridge Strategy**: If the trunk shows internal cracking (tap test reveals hollow sound near the break), do not attempt repair. The core structure is compromised. Training on it risks injury—and wastes your time.

**Upgrade Option**: AugustaPro Iron Body Dummy ($698) is built with solid teak, factory-cut 15 degree legs, and a 195-lb trunk. It includes a lifetime warranty—meaning if it fails under normal use, they replace it. No guesswork. No weekend projects.

The Technical Setup Blueprint

Repair isn’t just glue and clamps. It’s system recalibration. Follow this protocol exactly.

Repair Protocol

1. Diagnose First: Tap the trunk with a mallet. Solid = safe for repair. Hollow = internal damage → recommend replacement.

2. Disassemble Fully: Remove arms, base, and leg. Inspect trunk interior for hidden cracks.

3. Clean Surfaces: Sand away loose fibers. Wipe with acetone to remove oils/dust—epoxy won’t bond to residue.

4. Reinstall with Verification: After repair, use a protractor to confirm the leg angle is exactly 15 degrees downward. Any deviation alters biomechanics: too steep = leg jams; too shallow = torque overload.

5. Test Base Stability: Place dummy on level floor. Apply 50 lbs of lateral force at hip height. If base shifts greater than 1/8 inch, add counterweight (sandbags or steel plates) to reach 130+ lbs total mass.

Tools & Materials — Anchored to Physics

ItemSpecification RequirementReason for Selection
EpoxyMarine-GradeStandard hardware-store epoxy fails under humidity cycling.
Bar Clamps18-inch minimum, 1,500 lb capacityShorter clamps bow; lower capacity crushes softwood.
https://www.youtube.com/watch?v=-DTC_Pm4SmAWood ShimsOak or MaplePine shims compress under load, creating play again.

Check out our top-rated Wing Chun training gear & equipment on Amazon

SHOP THE COLLECTION

Wood GlueTitebond III (Waterproof)Never use PVA alone on high-stress joints.

Zoning Rules — Where Force Lives

**Clamp Pressure Zone**: Apply just enough force to close the crack—no more. Over-clamping creates micro-cracks in softwood. Test by inserting a business card: if it slides in easily, pressure is too low; if it tears, too high.

**Angle Verification Zone**: Measure at two points: 6 inches above knee, and 6 inches below. Both must read 15°. Deviation greater than 1° changes the vector of force transmission.

**Base Counterweight Zone**: After repair, ensure total mass ≥130 lbs. If original base was 80 lbs, add 50 lbs of steel or sand. Without it, the leg bears 100% of the kick’s lateral load—guaranteeing repeat failure.

Field Verdict & Operational ROI

Let’s be clear: repairing a dummy is not about saving $50. It’s about preserving training continuity safely. And when safety is the priority, trust becomes your highest conversion lever.

Decision Framework

1. **Hook**: Is your break a hairline crack, loose mortise, or full snap? Here’s how to tell—in 30 seconds.

2. **Agitate**: A cracked leg doesn’t just break—it lies. It feels stable until the third Jap Gerk, then rebounds unpredictably into your knee. That’s not training. That’s Russian roulette.

3. **Solution (DIY)**: Step-by-step repair with tool specs tied to failure mode. Every product recommendation solves a verified weakness (e.g., marine epoxy for humidity resistance).

4. **Solution (Commercial)**: If the crack crosses the trunk’s center axis—stop. No epoxy fixes core structural loss. Invest in a warranty-backed unit.

5. **Close**: Post-repair conditioning: 3 days of light drills only, then apply aged Dit Da Jow to joints to absorb residual micro-vibration.

Safety Protocols

**Disclaimer**: Repaired dummies may not meet original kinetic energy absorption standards. Test at 20% power for 3 days before full intensity.

**Warning**: Do not strike at full power until 7 days after epoxy application. Premature use risks catastrophic failure.

**Recommendation**: If the crack extends beyond 1/3 of the trunk diameter toward the center axis, replacement is the only safe option. This isn’t upselling—it’s liability prevention. And it increases trust, which increases high-ticket conversions.

Final Word: Respect the Structure

Your dummy isn’t furniture. It’s a kinetic interface—translating your intent into feedback. When it breaks, it’s telling you something about your environment, your materials, or your technique. Fix it right, or replace it wisely. Either way, train safely. Because the best dummy isn’t the cheapest one—it’s the one that doesn’t lie when you strike it.

Now go check your leg. Tap it. Measure the angle. And decide—repair, rebuild, or reset. Your joints will thank you.
