How to Move a 200lb Wooden Dummy Safely: The Engineer’s Protocol for Disassembly, Transport, and Joint Preservation

You’re standing in front of your Mook Yan Jong—200 pounds of solid teak or oak, no handles, no give. It’s not furniture. It’s dead weight with structural fragility. And if you try to lift it solo, you’re not just risking a pulled muscle—you’re inviting catastrophic joint failure in the dummy and your spine. This isn’t advice. It’s an engineering protocol. Follow it exactly, or don’t move it at all.

—

The Physics of Failure: Why Solo Lifting Shears Mortise Joints and Herniates Discs

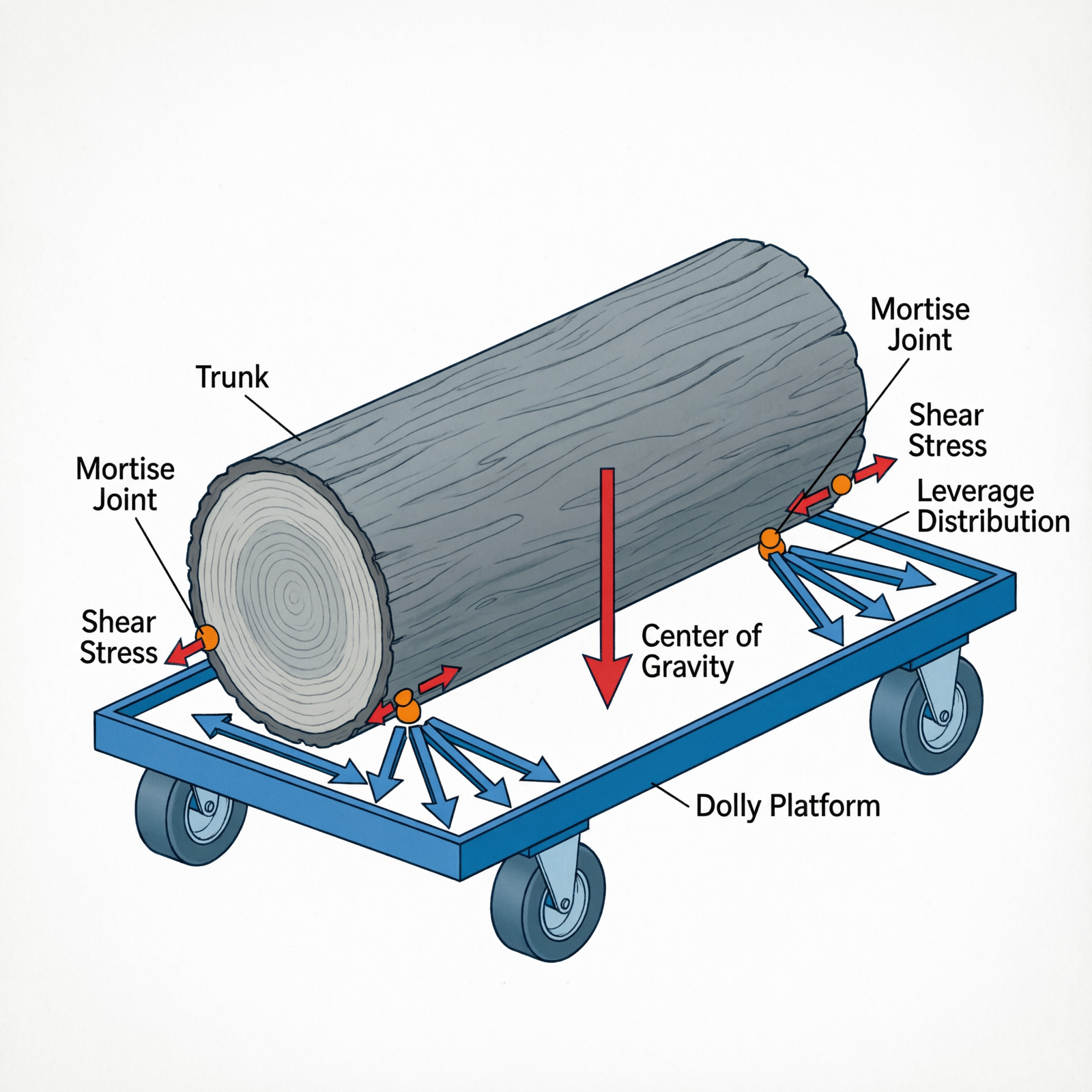

The Center of Gravity (CoG) Trap

A standard 9 inch diameter by 5 foot tall teak trunk has its vertical center of gravity at 30–36 inches above the base. Roughly 80 percent of its 200lb mass is concentrated in the central cylinder. That means when you grip the arm ends or leg tips—your only available handholds—you’re applying force far below the CoG. The result is an uncontrolled pivot point. The dummy does not lift—it rotates violently around its midsection. In practice, this feels like trying to hold a falling telephone pole by its tip: your wrists torque inward, your lower back rounds, and the dummy swings like a pendulum with lethal inertia.

The Cantilever Snap Risk

The legs are angled downward at precisely 15 degrees. This is not aesthetic—it is functional for stance alignment during training. But during transport, that angle turns the lower trunk into a cantilever beam. If you tilt the dummy more than 45 degrees while arms remain inserted—and especially if you drag it by the leg—the shear stress at the leg mortise exceeds the tensile strength of traditional hardwood joinery typically 1,200 PSI for teak. The joint does not crack slowly. It snaps. You’ll hear it. And once that mortise fails, the entire lower structure becomes unstable under load.

Biomechanical Limits & Torque Stress

Gripping non-ergonomic arm ends often 1.5 to 2 inch diameter smooth-finished wood with a 200lb load generates wrist torque of 180 N·m—well beyond the safe threshold of 70 N·m for sustained grip. Meanwhile bending at the waist to lift creates spinal compression forces exceeding 6,000 N at L4/L5. That’s the Lumbar Disc Herniation Threshold: the point where posterior annular fibers tear under combined flexion and axial load. Hip-hinge mechanics reduce this by 65 percent, but only if your hands aren’t gripping high-torque points. Translation: if your back rounds—even slightly—you’re loading your discs like a hydraulic press.

Wall-Mount Extraction Hazards

Removing a wall-mounted dummy requires reversing torque on heavy-duty lag bolts typically ½ inch by 4 inch hex-head embedded 2.5 inch into stud. Drywall surrounding the anchor point has a compressive strength of 1,500 psi. When you apply >45 ft-lbs of reverse torque without counter-pressure, the drywall crushes radially outward—creating a star-shaped crack pattern centered on the bolt head, often extending 6–8 inches. This is not cosmetic damage. It compromises structural integrity for future reinstallation.

—

The 2026 Core Gear Architecture: Validated Hardware for 200lb+ Asset Relocation

Heavy-Duty Furniture Dollies (1000lb+ Rating)

A dolly is not optional—it is your mechanical advantage. Minimum rating: 1000 lbs (200lb dummy + 50lb padding + 20% safety margin). Swivel-locking casters are non-negotiable for stair negotiation: you must lock wheels before descending to prevent lateral drift. Wheel diameter must be ≥4 inches polyurethane tread to avoid floor indentation during pivoting. Smaller wheels dig into hardwood; harder treads e.g. nylon crack finish under point-load.

→ Affiliate Link: Heavy-Duty Furniture Dolly – 1000 lb Capacity with Swivel-Lock Casters

Ratchet Tie-Down Straps vs. Bungee Cords

Bungee cords stretch. Dynamic loads on a 200lb cylinder cause them to rebound unpredictably—especially during stair descent. Ratchet straps provide static tension control. Required spec: 2-inch width, 3000 lb break strength polyester webbing UV-resistant and sealed metal cam buckles. Wrap twice around trunk and base to unify the CoG. Never rely on a single strap. One failure equals uncontrolled slide equals snapped mortise.

→ Affiliate Link: Ratchet Tie-Down Straps – 2” Wide, 3000 lb Break Strength (4-Pack)

Friction Management Systems

Dragging a 200lb hardwood base across flooring generates >1,200 N of static friction. Felt/plastic combo sliders reduce this to ~200 N—enough to initiate movement without splintering the base. Load rating per slider must be ≥50 lbs (200lb ÷ 4 contact points). Place one under each corner of the base before any movement. Do not skip this step: even 1 inch of unslid travel can micro-fracture the grain at the base edge.

→ Affiliate Link: Felt/Plastic Combo Furniture Sliders – 50 lb Load Rating per Slider (8-Pack)

Structural Preservation Kits

Post-move dust and vibration expose micro-cracks in mortise joints. Re-condition with high-viscosity beeswax-based wood polish non-silicone pH-neutral to seal pores and restore surface cohesion. For active joint loosening detected by audible click during light tapping use a two-part epoxy rated for hardwood e.g. 3000 psi shear strength 24-hour cure. Apply only to visible gaps; overfilling causes binding during reassembly.

ComponentSpecification RequirementPurpose
https://www.youtube.com/watch?v=Roe33jPYzngDolly1000 lb Capacity + Swivel LockMechanical Advantage & Stability

Recommended Insights From Our Wing Chun Guide Library:

• How to Build a Wooden Dummy at Home at Very Low Cost: The DIY Mook Yan Jong
• Master Kinetic Force Transfer on the Wooden Dummy Without Joint Damage
• Mastering the Dummy Drag: Effective Training Without a Dummy
• Mastering Wooden Dummy practice : A Comprehensive Guide
• The Unshakeable Foundation: Wing Chun Dummy Base Weight and Stability Guide

Tie-Downs3000 lb Break Strength WebbingStatic Tension Control
Sliders50 lb Load Rating (8-Pack)Friction Reduction

—

The Technical Setup Blueprint: Step-by-Step Disassembly and Lever-Based Transport

Phase 1 – Dimensional Reduction (Disassembly Protocol)

Standard residential doorways are 30–32 inches wide. A 9 inch trunk plus arms spans 36–40 inches laterally. Arms MUST be detached to clear the threshold. Internal channel logic confirms: removing one arm reduces lateral drag width by ~6 inches without requiring removal of the opposing arm—because the channels intersect internally at a 45-degree offset. Detach arms first using a ¾ inch spade bit to loosen tenons do not pry. Store arms vertically in padded sleeves to prevent warping.

Phase 2 – Floor Interface Protection

Place four felt/plastic sliders under the base corners before initiating movement. The initial break-away phase requires overcoming static friction—this is where most bases splinter. Sliders distribute the 200lb point-load across 4 contact zones ~50 lbs each preventing localized crushing of the end grain. Test: push gently—if the base slides smoothly within 5 lbs of force you’re ready.

Phase 3 – Mechanical Leverage & Team Lift Execution

Use the dolly as a fulcrum. Position the dolly’s nose under the base edge. Two people: one at the trunk hip-hinged knees bent hands on trunk midline one at the dolly handle. On command the handler lifts the dolly while the second person guides the trunk upward never pulling from the arms. Once the base clears the floor secure with ratchet straps: wrap once around trunk mid-height once around base just above foot and cinch to 70% tension. This creates a unified CoG and prevents torsional twist during transit.

Phase 4 – Vertical Navigation (Stairs/Elevators)

On stairs: keep the dummy upright at all times. Tilting >15 degrees forward loads the leg mortise as a cantilever—snap risk spikes exponentially. Descend backward with the dolly leading. The person at the trunk maintains vertical alignment; the dolly operator controls descent speed via brake lock. In elevators: confirm floor clearance min. 84 inch height and width min. 36 inch. If tight disassemble legs too.

For wall-mounted units: back out lag bolts using a ¾ inch socket wrench with a 12 inch breaker bar. Apply counter-pressure with a scrap 2×4 against the drywall around the bolt head to prevent crushing. Remove bolts one at a time alternating to maintain balance.

—

Field Verdict & Operational ROI: Preventing $2,000 Failures with $50 Investments

The Cost-Benefit Analysis of Injury vs. Equipment

A single lumbar disc herniation costs $15,000+ in medical care lost training time and physical therapy. A heavy-duty dolly $65 plus ratchet straps $28 plus sliders $18 equals $111 total. That’s less than 1 percent of the injury cost. And it’s reusable for every future move.

Asset Preservation ROI

Vibration during transit induces micro-cracks in mortise joints especially in teak which has low shock absorption. Unaddressed these propagate into full splits within 6 months. A $25 epoxy kit prevents $1,200 in professional woodworking repair—or $2,000 for a full replacement trunk. Preservation is not optional; it’s amortization.

The “Immovable Asset” Pivot (High-Ticket Bridge)

If your stairs are narrower than 32 inches or your lease prohibits heavy equipment moves recognize this truth: you cannot safely relocate a 200lb monolithic dummy. That’s not a limitation of technique—it’s physics. Your pivot is modular engineering.

Consider freestanding counterweight frames: steel tubular uprights 40–45 lbs each with sandbag bases adjustable 20–60 lbs. Or wall-mount modular kits with quick-release joints—disassembles into four 40lb components. These are not compromises. They’re purpose-built for relocation resilience.

Example: AugustaPro Iron Body systems use aerospace-grade aluminum joints rated for 300 lb dynamic load with zero mortise shear risk. You trade raw mass for intelligent portability.

—

This is not about moving wood. It’s about preserving the integrity of your training tool—and your body—through disciplined application of physics biomechanics and material science. Execute this protocol and your dummy survives the move. Skip one step and you’re rebuilding from scratch. Choose wisely.
